Document Type : Research Paper

Authors

1 Materials Engineering Dept., University of Technology, Baghdad-Iraq, Alsina'a Street, 10066 Baghdad, Iraq.

2 Building & Construction Engineering Dept., Al-Mustaqbal University College, Babylon, Iraq.

Abstract

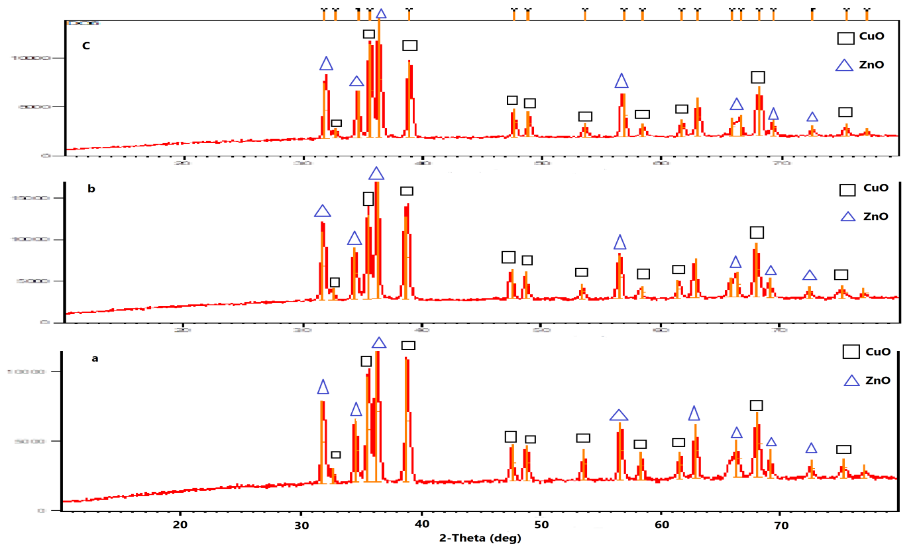

Copper oxide (CuO) and zinc oxide (ZnO) are two of the most promising oxides under development right now. The sol-gel technique was used to make Nano composite particles NCPs of ZnO-CuO. The copper (II) nitrate rehydrate 0.1M and zinc nitrate hex hydrate 0.1M liquids were mixed in a 1:1 ratio, and the gel was formed at 80 °C, then dried and calcined for various times 500 °C (3, 5, and 7 hours). Particle size analyzer (PZA), X-ray diffraction (XRD), field emission scanning electron microscopy (FESEM), and apparent density were used to characterize the CuO/MgO particles. The x-ray diffraction results showed that the phases of the composite particles were pure. FESEM scans, on the other hand, revealed nanoparticles incorporated in the ZnO-CuO matrix with particle sizes ranging from 60.76 to 145.1 nm. The density of the aforesaid samples was 0.1382, 0.1418, and 0.1469 g/cm3 in that order, increasing as the calcined duration increased. This promotes crystal formation, and CuO/MgO has strong catalytic activity for advanced applications.

Graphical Abstract

Highlights

  • The sol-gel technique was used to make Nano composite particles NCPs of ZnO-CuO.
  •     FESEM scans revealed nanoparticles incorporated in the ZnO-CuO matrix with particle sizes ranging from 60.76 to 145.1 nm.
  • The density of the aforesaid samples was 0.1382, 0.1418, and 0.1469 g/cm3 in that order, increasing as the calcined duration increased.
  •  This promotes crystal formation, and CuO/MgO has strong catalytic activity for advanced applications.

Keywords

Main Subjects
