Document Type : Research Paper


Production Engineering and Metallurgy Dept., University of Technology-Iraq, Alsina’a street, 10066 Baghdad, Iraq.


This study discussed the influence of chemical machining parameters such as (machining time, type of etchant, etching temperature, and concentration of the solution) on the surface roughness of ceramic material (silicon carbide) as a workpiece in the chemical machining (CHM) process. To achieve the best value for surface roughness. In this research, four levels of factors affecting the chemical etching process were used, the values of etching temperature (60, 80, 100, and 120) °C, the etchant concentration (50, 60, 70, and 80) %, and machining time (30, 50, 70, and 90) min, and two etchant type (HBr, HCl). Experiments proved the best value of surface roughness is obtained (2.933) µm experimentally and (2.958) µm at a predictable program when using hydrochloric acid (HCl) at a temperature (80) °C, time (50) min, and etchant concentration (50) %. The coefficient determination (R-sq) to predict the surface roughness is ((93.7).

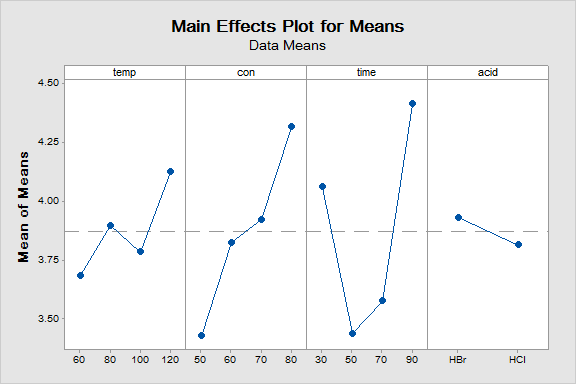

Graphical Abstract


  • Influence of chemical machining parameters on the surface roughness of ceramic material (silicon carbide).
  • The best surface roughness value is obtained (2.933) µm experimentally and (2.958) µm at a predictable program.
  • The coefficient determination (R-sq) to predict the surface roughness is ((93.7).


Main Subjects

[1] T.G. Anusree, and P. GOVINDAN, Analysis of chemical machining for practical applications, India /Government college of Engineering, Kannur, 2 (2014) 77-86.
[2] J. Liu, I. Nikolay, G. Deter, and C. Gregory, Etch rate and surface morphology of plasma etched glass and glass ceramic substrates. Journal of Non-Crystalline Solids, 342 (2004) 110-115.
[3] S.K Saad., and I. Ali, Influence of Machining Parameters on Surface Roughness in Chemical Machining of Stainless Steel 304, Eng. &Tech. Journal, 33 (2015) 1377-1388.
[4] O. Çakir, A. Yardimeden, and T. Özben, Chemical machining, International Scientific Journal, 28 (2007) 499-502.
[5] O. Çakır, Study of Etch Rate and Surface Roughness in Chemical Etching of Stainless Steel, Key Eng. Mater. 364–366 (2007) 837–842.
[6] A. Raj, A. V, and T. S. Nanjundeswaraswany, Chemical Machining Process - An Overview, 3 (2019) 37–39.
[7] A. F. Ibrahim and D. A. Ghullam, The Effect of Machining Parameters on Weight Removal in Chemical Machining of Titanium Alloy, Diyala Journal of Engineering Sciences., 12 (2019) 33–40.
[8] H. A. H. Al-ethari, K. F. Alsultani, and N. D. F, Variables Affecting the Chemical Machining of Stainless Steel 420, 3 (2013) 210–216.
[9] T. S. Nanjundeswaraswany, Chemical Blanking and Chemical Milling Process an Outline, 9 (2019) 83-86.
[10] Hassan El-Hofy, Advanced machining processes, McGraw-Hill, (2005).
[11] H. T. Ting, K. Abou-el-hossein, and H. B. Chua, Predictive Modelling of Etching Process of Machinable Glass Ceramics, Boron Nitride, and Silicon Carbide, 2 (2011) 1601-1621.
[12] H. Abderrazak and E. S. B. H. Hmida, Properties of application of silicon carbide, Silicon Carbide Synth. Prop., DOI: 10.5772/15736, 2011.
[13] K. W. Mas’udah, M. Diantoro, and A. Fuad, Synthesis and Structural Analysis of Silicon Carbide from Silica Rice Husk and Activated Carbon Using Solid-State Reaction, J. Phys. Conf. Ser., 1093 (2018).
[14] B. F. Liu, Properties and manufacturing method of silicon carbide ceramic new materials, Appl. Mech. Mater., 416–417 (2013) 1693–1697.
[15] N. Patel-Sorrentino, J. Y. Benaim, D. Cossa, and Y. Lucas, Synthesis of hydrochloric acid solution for total mercury determination in natural waters, Anal. Bioanal. Chem., 399 (2011) 1389–1392.
