Engineering and Technology Journal

Uncracked Palm Kernel Shell Effect on Compressive Strength of Concrete

Document Type : Research Paper

Authors

1 Civil Engineering Dept., Covenant University, PMB 1023, Ota, Ogun state, Nigeria.

2 Civil Engineering Dept., Madonna University, P.M.B 05, Elele, Rivers State, Enugu, Nigeria.

Abstract

In recent times, the production of concrete has become a significant concern due to the rapid population growth and the depletion of raw materials. In this research, we investigated the use of Uncracked Palm Kernel Shell (UPKS) as a replacement for crushed granite in concrete production, with replacement percentages of 0%, 10%, 20%, 30%, and 100%. The concrete mix combined Ordinary Portland Cement with river sand and coarse aggregates (granite and UPKS). The properties of fresh concrete were assessed using the slump test, while the compressive strength test was conducted after curing the samples for 7, 14, 21, and 28 days. A total of 60 concrete cubes were cast for this study. Our findings indicate that the workability of concrete decreased as the percentage of UPKS replacement for granite increased. Additionally, the compressive strength of the concrete decreased with higher percentages of UPKS replacement. On the 28th day of curing, the control concrete achieved a strength of 28.59 N/mm². However, concrete containing 10%, 20%, 30%, and 100% uncracked palm kernel shells achieved average strengths of 20.74 N/mm², 18.22 N/mm², 15.31 N/mm², and 12.23 N/mm², respectively. This represents a 27%, 36%, 46%, and 57% decrease in strength compared to the control concrete. Our study reveals that concrete with 10% to 30% replacement of granite with uncracked palm kernel shell can produce eco-friendly lightweight grade 15/20 concrete, making it suitable for sustainable construction. The developed model was tested and found adequate for predicting the concrete properties.

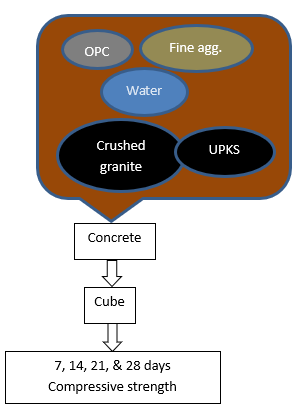

Graphical Abstract

Highlights

  • Grade C20 concrete was obtained for CC10,90 on the 28th day of curing.
  • Grade C15 concrete was obtained for CC20,80 and CC30,70 on the 28th day of curing.
  • A predictive model with a good coefficient of determination was formulated.
  • The adequacy of the model was verified using a student’s t-test.

Keywords

Main Subjects

References
  1. M. Bajad, High-Quality Concrete Comprising of several m of ACM’s, Civ. Environ. Eng., 16 (2020) 138-147. http:/doi.org/10.2478/cee-2020-0014
  2. Oyebisi, A. Ede, F. Olutoge, D. Olukaani, Assessment of Activity Moduli and Acidic Resistance of Slag-based Geopolymer Concrete Incorporating Pozzolan, Case Stud. Constr. Mater., 13 (2020) 1-20. http:/doi.org/10.1016/j.cscm.2020.e00394
  3. Zongjin, L. Advanced Concrete Technology, John Wiley, and Sons New Jersey, 2011
  4. Subramani, V. K. Pugal, Experimental study on Plastic waste as A coarse aggregate for structural concrete, Int. J. Recent Innov. Trends Comput. Commun., 6 (2018) 63-67.
  5. E. Ogundipe, A. M. Ajao, B. F. Ogunbayo, A. S. Adeyi, Impact of Partial Replacement of granite with periwinkle and palm kernel shells on concrete strength, Proceedings of International Structural Engineering and Construction.Theme: Holistic Overview of Structural Design and Construction At: Limassol, Cyprus, 2020.
  6. Bhatt, P., Macginley, T.J., and Choo, B.S. Reinforced concrete. Design theory and examples. Taylor and Francis Group, third Edition, London, 2006.
  7. E. Ogundipe, B. F. Ogunbayo, O. M. Olofinnade, L. M. Amusan, C. O. Aigbavboa, Affordable Housing Issue: Experimental Investigation on Properties of Eco-friendl Lightweight Concrete Produced from Incorporating Periwinkle and Palm Kernel Shells, Results Eng., 9 (2021) 100193. https://doi.org/10.1016/j.rineng.2020.100193
  8. O. Bamigboye, A. N. Ede, A. A. Raheem, O. M. Olofinnade, U. Okorie, Economic Exploitation of Gravel in place of Granite in Concrete Production, Mater. Sci. Forum, 866 (2016) 73-77. http:/doi.org/10.4028/www.scientific.net/msf.866.73
  9. Mehta, K. P. , Monteiro, P. J. M. Concrete: Microstructure, Properties and Materials, Mc Graw Hill, New York, 2006.
  10. O. Oyejobi, M. Jameel, N. H. R. Sulong, S. A. Raji, H. A. Ibrahim, Prediction of Compressive Strength Light Weight Concrete Containing Nigerian Palm Kernel Shells, J. King Saud Univ. Eng. Sci., 32 (2020) 303-309. https://doi.org/10.1016/j.jksues.2019.04.001
  11. C. Ezeigwe, Evaluation of the causes of housing problem in Nigeria: a case study of Awka the capital city of Anambra State, J. Econ. Sustain. Dev., 6 (2015) 87-93.
  12. Danso, H. Use of Agricultural Waste Fibers as Enhancement of soil blocks for Low- cost Housing in Ghana, PhD Thesis School of Civil Engineering and Surveying, University of Portsmouth, Portsmouth, 2015.
  13. Stein, Plastics can be good for the Environment, J. New Engl. Assoc. Chem. Teach., 21 (2002) 1-5.
  14. U. Azuna, Compressive Strength of Concrete with Palm Kernel Shells as a Partial Replacement for Coarse Aggregate, SN Appl. Sci., 1 (2019) 342-352. https://doi.org/10.1007/s42452-019-0334-6
  15. G. Eziefula, H. E. Opara, U. C. Anya, Mechanical Properties of Palm Kernel Shell Concrete in Comparison with Periwinkle Shell Concrete, Malays. J. Civ. Eng., 29 (2017) 1-14.
  16. BS 8110-1, Structural use of Concrete part 1 Code of Practice for Design and Construction, London, British Standards Institutions, 1997.
  17. A. Fadele, M. Otieno, S. O. Omojola, M. Adeyemi, The use of Palm Kernel Shell as Partial Replacement for Coarse Aggregate in Concrete, Int. Conf. Non-Conventional Mater. Technol., 2022, 1-5. https://doi.org/10.5281/zenodo.6603486
  18. Itam, S. Baddu, N. L. Kamal, M. A. Alam, U. I. Ayash, The feasibility of Palm Kernel Shell as a Replacement for Coarse Aggregate in Lightweight Concrete, IOP Conf. Ser.: Earth Environ. Sci., 32, 012040. https://doi.org/10.1088/1755-1315/32/1/012040
  19. Shafigh, M. Z. Jumaat, H. B. Mahmud, N. A. A. Hamid, Lightweight Concrete made from Crushed oil palm shell: Tensile Strength and Effect of Initial Curing on Compressive Strength, Constr. Build. Mater., 27 (2012) 252- 258. https://doi.org/10.1016/j.conbuildmat.2011.07.051
  20. P Oti, K. N. Nwaigwe, N. A. A. Okereke, Assessment of Palm Kernel Shell as a Composite Aggregate in Concrete, CIGR J., 19 (2017) 34-41.
  21. O. Odeyemi, R. Abdulwahab, M. A. Anifowese, O. D. Atoyebi, Effects of Curing Methods on the Compressive Strength of Palm Kernel Shell Concrete, Civ. Eng. Archit., 9 (2021) 2286-2291. https://doi.org/10.13189/cea.2021.090716
  22. Oyejobi, T. Abdulkadir, I. Yusuf, M. Badiru, Effects of Palm Kernel Shells sizes and mix ratios on Lightweight Concrete, J. Res. Inf. Civ. Eng., 9 (2012) 342-352. https://doi.org/10.5281/zenodo.192493
  23. Shetty, M. S. Concrete Technology: Theory and Practice, S. Chand, New Delhi, 2012.
  24. ASTM C143, Standard test method for slump of Hydraulic Cement Concrete, West Conshohocken, America Society for Testing and Materials, 2015.
  25. ASTM C192, Standard Practice for Making and Curing Concrete test Specimens in the Laboratory, West Conshohocken, America Society for Testing and Materials, 2015.
  26. E. Ogundipe, A. O. Ogunde, H. F. Olaniran, A. M. Ajao, B. F. Ogunbayo, J. A. Ogundipe, Missing gaps in Safety Education and Practices: academia perspectives, Int. J. Civ. Eng .Technol., 9 (2018) 273-289.
  27. E. Ogundipe, H. F. Olaniran, A. M. Ajao, B. F. Ogunbayo, Assessing the Impact of Quality Supervision on Construction Operatives’ Project Delivery in Nigeria, Int. J. Civ. Eng .Technol., 9 (2018) 426-439.
  28. BS EN 12390-4, Testing Hardened Concrete, Compressive strength of test specimens-Specification for testing Machines, London, British Standards Institutions, 2019.
  29. BS EN 12390-3, Method of Determination of Compressive Strength of test Specimens, London, British Standards Institutions, 2019.
  30. Samprit, C., Ali, S. H. Regression Analysis by Example, New Jersey, John Wiley and Sons, 2006.
  31. O. Ettu, O. M. Ibearugbulam, C. S. Ezenkwa, D. A. Amatobi, E. Onyezewe, Split tensile strength of Concrete Incorporating Rice husk ash and Sawdust ash, J. Multidiscip. Eng. Sci. Technol., 3 (2016) 5194-5198.
  32. Cindy, D. K. , Robert, J. F. J. Modelling, and Interpreting Interactive Hypotheses in Regression Analysis, University of Michigan Press, Michigan, 2007.
  33. Hassoun, M. N. , Al-manaseer, A. Structural Concrete: Theory and Design, John Wiley and Sons, New Jersey, 2008.
  34. A. Idah, J. J. Musa, Palm Kernel Shell as Aggregate for Lightweight Concrete, Niger. J. Technol. Dev., 7 (2010) 83-88.
